Table of Contents
Introduction
This post describes Oracle Enterprise Command Center Framework (ECC) upgrade from versions V2 and later to V6. It is not meant to replace MOS Doc ID 2495053.1, which is very clear and detailed. We want to share our experience including faced errors and solutions.
For installation instructions of ECC V2 please refer to this post.
For upgrade instructions for different ECC versions please refer to this link.
And good news for those who would like to see the latest ECC in action. You can try it yourself in our demo environment. Just log in and choose Payables manager or Receivables manager responsibility and navigate to the command center menu entry.
Please also try Blitz Report which is the fastest way to export Oracle EBS data into Excel.
References
Following sources have been used to get ECC upgrade instructions:
Installing Oracle Enterprise Command Center Framework, Release 12.2 (Doc ID 2495053.1)
Requirements
Supported OS versions
Oracle Linux 7 or Red Hat Enterprise Linux 7 (64-bit)
Our existing ECC installation uses standalone Oracle Linux 7 virtual machine.
If you initially installed Oracle Enterprise Command Center Framework Release 12.2 V2 on Oracle Linux 6 or Red Hat Enterprise Linux 6, then you must upgrade the operating system to Oracle Linux 7 or Red Hat Enterprise Linux 7 before you begin the upgrade to Oracle Enterprise Command Center Framework Release 12.2 V5.
Required OS resources
MOS Doc ID 2495053.1 provides table describing OS resources requirements. We started with minimal resources assignment as it can be easily changed for a virtual machine.
Number of users | Number of records | Number of Cores | Required Memory |
50 | 2 million | 2 | 5 GB |
Perform backups
Ensure that you have sufficient disk space to back up the existing ECC installation and to extract the new .bsx file from the latest ECC version quick install package.
Shutdown ECC
[oracle@ecc ~]$ ./stopecc.sh |
Compress ECC installation directory
[oracle@ecc u01]$ nohup tar -czvf ecc_demo_v4_bkp.tar.gz ecc_demo>/tmp/bkp_log & |
Export Oracle Enterprise Command Center Framework Schema
After adjusting directory path run the following commands to export the ECC_SCHEMA from the database instance as user with DBA privileges:
[oracle@ecc ~]$ sqlplus '/as sysdba' |
SQL> create or replace directory ECC_EXP_DIR_NAME as '/backup/snapshots/BACKUPS/ecc/ECC_schema_backup'; SQL> grant read, write on directory ECC_EXP_DIR_NAME to ECC; SQL> exit |
[oracle@ecc ~]$ export ECC_SOURCE_SCHEMA=ECC [oracle@ecc ~]$ read -s ECC_SOURCE_SCHEMA_PASSWORD [oracle@ecc ~]$ expdp ${ECC_SOURCE_SCHEMA}/${ECC_SOURCE_SCHEMA_PASSWORD} DIRECTORY=ECC_EXP_DIR_NAME DUMPFILE=ecc_dump_v4.dmp LOGFILE=ECC_EXP_DIR_NAME:exportSchema_v4.log |
Startup ECC
[oracle@ecc ~]$ ./startecc.sh |
Run upgrade script
Create directory a staging directory
Download patch Patch 31818720 from MOS
Unzip patch into the staging directory
unzip p31818720_R12_GENERIC.zip |
Copy two .bsx files to a staging directory. Add executable permissions to them
chmod +x *.bsx |
From the stage directory, execute ECC installer files:
for f in *.bsx; do sh $f; done |
Installer creates two directories:
- insta_client: The SQL*Plus client directory
- Oracle: Oracle Enterprise Command Center Framework quick install scripts and software
Change to the /Oracle/quickInstall directory and run the upgrade.sh script.
cd Oracle/quickInstall ./upgrade.sh |
When prompted, enter the following details:
- The base directory of the existing Oracle Enterprise Command Center Framework installation that you want to upgrade. It’s the directory under which insta_client and Oracle directories are located.
- The password for the Oracle Enterprise Command Center Framework domain admin user
- The password for the Oracle Enterprise Command Center Framework database user
The script displays messages indicating the actions performed to carry out the upgrade.
These messages are also recorded in a log file in the directory specified for the ECC_LOG_DIR configuration property in your installation. The log file is named $ECC_LOG_DIR/upgrade.log.
Note: The following warning message may appear during the upgrade process:
java.rmi.RemoteException: [Deployer:149145]Unable to contact "eccManaged". Deployment is deferred until "eccManaged" becomes available. WARNING: If this is a redeploy app and contains JSP pages that have been touched, these JSP changes won't be reflected when the server starts unless precompile is set to true in weblogic.xml |
You can safely ignore this message. This is an informational message indicating that deployment is marked as delayed because the Oracle Enterprise Command Center Framework domain managed server is shut down at this point. The upgrade will proceed to the next step, and new deployment along with relevant changes will take effect when the upgrade script restarts the managed server.

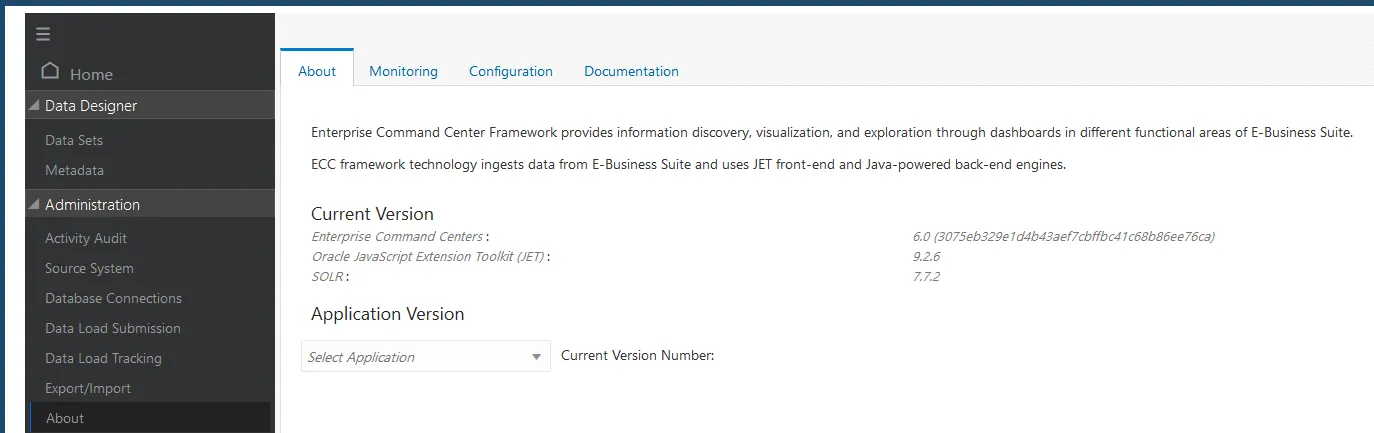

Verify the upgrade
After the upgrade script finishes running, verify the upgrade by opening the ECC Developer function under ECC Developer responsibility
EBS 12.2.10 required patches
EBS patches need to be applied before configuring ECC. Below list of patches is specific for our EBS 12.2.10 instance as we have some of the patches applied. For example we had R12.AD.C.Delta.12 and R12.TXK.C.Delta.12 applied as we recently upgraded to EBS 12.2.10. First two patches: ATG consolidated patch and adapter patch are mandatory. Other patches depend on the products with Enterprise Command Centers that you want to use and installed languages.
Patches must be applied in the order below. MOS Document 2495053.1 prohibits merging between ATG consolidated patch,adapter patch and the product family consolidated patches. Following this rule I applied ATG consolidated patch and its NLS patches, then adapter patch and its NLS patches. Then I merged and applied all product family consolidated patches including their NLS patches.
[-] 31818502:R12.ATG_PF.C //ATG consolidated patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [+]30399994 R12.ATG_PF.C.delta.9 [-] 31818510:R12.ATG_PF.C //adapter patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [+]30399994 R12.ATG_PF.C.delta.9 [-] 31818615:R12.CC_PF.C // Customer Relationship Management product family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [-] 31818610:R12.FIN_PF.C // Financials product family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [-] 31818698:R12.HR_PF.C // Human Resources product family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [-] 31818605:R12.PRC_PF.C // Procurement product family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [-] 31818663:R12.PJ_PF.C // Projects product family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [-] 31818592:R12.SCM_PF.C //Supply Chain Management family patch [+]R12.AD.C.delta.12 [+]R12.TXK.C.delta.12 [+] 29399610:R12.PO.D // Oracle Contract Lifecycle Management for Public Sector Command Center - CO: Requisitions Dashboard (bug 29399610) (patch 30399999, applied at 30-SEP-20) [-] 32508332:R12.EAM.C // Oracle Enterprise Asset Management Command Center with Oracle E-Business Suite Release 12.2.10 [+]R12.AD.C.delta.12 [+]R12.ATG_PF.C.delta.9 [+]30639001 R12.SCM_PF.C.delta.10 [+]R12.TXK.C.delta.12 [-] 30215625:R12.PER.C // Oracle Human Resources Command Center with Oracle E-Business Suite Release 12.2.6 and later [-] 32379321:R12.INV.C // Oracle Inventory Command Center – Receiving Dashboard with Oracle E-Business Suite Release 12.2.9 and later [-] 32394548:R12.INV.C // Oracle Inventory Command Center – Space Utilization Dashboard [+] 31696168:R12.ICX.D // Oracle iProcurement Command Center with Oracle E-Business Suite Release 12.2.5 and later (bug 31696168) (patch 2054156059, applied at 29-MAR-21) [-] 32294351:R12.OKL.C // Oracle Lease and Finance Management Command Center [+]12.2.3 [+]R12.AD.C.delta.7 [+]R12.ATG_PF.C.delta.5 [+]R12.FIN_PF.C.delta.5 [+]R12.TXK.C.delta.7 [-] 31955152:R12.PN.C // Oracle Lease Contracts Command Center (Oracle Property Manager) [+]12.2.3 [+]R12.AD.C.delta.5 [+]R12.ATG_PF.C.delta.4 [+]R12.PJ_PF.C.delta.4 [+]R12.TXK.C.delta.5 [+] 31054002:R12.ICX.D // Oracle Procurement Command Center (bug 31054002) (patch 2054156059, applied at 29-MAR-21) [+] 31713023:R12.PO.D // Oracle Procurement Command Center (bug 31713023) (patch 2054156059, applied at 29-MAR-21) [+] 30990390:R12.ICX.D // Oracle Project Procurement Command Center (bug 30990390) (patch 2054156059, applied at 29-MAR-21) [+] 31713023:R12.PO.D // Oracle Project Procurement Command Center (bug 31713023) (patch 2054156059, applied at 29-MAR-21) [+] 31604775:R12.PA.C // Oracle Projects Command Center (bug 31604775) (patch 2054156059, applied at 29-MAR-21) [+] 31457942:R12.PA.C // Oracle Projects Command Center (bug 31457942) (patch 2054156059, applied at 29-MAR-21) [-] 32363931:R12.PA.C // Oracle Projects Command Center [-] 31885491 // Customer Relationship Management online help [-] 31885457 // Financials online help [-] 31885504 // Human Resources online help [-] 31885440 // Procurement online help [-] 31885479 // Projects online help [-] 31885375 // Supply Chain Management online help |
Start ADOP patching cycle
{ echo $appspass; echo $systempass; echo $wlspass; }|adop phase=prepare |
Apply ATG consolidated patch and adapter patch plus NLS without merging them. Adop will apply them in the sequence they appear in the patch list.
{ echo $appspass; echo $systempass; echo $wlspass; }| adop phase=apply patchtop=/u01/stage patches=31818502,31818510 |
Apply rest of the patches plus NLS merging them (the command is truncated due to a large number of patches)
{ echo $appspass; echo $systempass; echo $wlspass; }| adop phase=apply patchtop=/u01/stage patches=31818615,31818610,31818698,31818605,31818663,31818592,32508332,30215625,32379321,32394548,32294351,31955152,32363931,31885491,31885457,31885504,31885440,31885479,31885375 merge=yes |
Issue
{ echo $appspass; echo $systempass; echo $wlspass; }|adop phase=actualize_all |
Faced issue during actualize_all phase for FPA_ objects related to Projects application:
SQL> alter package APPS.FPA_MAIN_PROCESS_PVT compile; alter package APPS.FPA_PORTFOLIO_PROJECT_SETS_PVT compile * ERROR at line 1: ORA-04045: errors during recompilation/revalidation of APPS.FPA_PORTFOLIO_PROJECT_SETS_PVT ORA-00600: internal error code, arguments: [kql_tab_diana:dep copy], [0x0D3EE13F0], [0x7F8D85D77260], [3], [], [], [], [], [], [], [], [] |
Workaround for this problem can be found in Bug 24489846 and Doc ID 2426230.1
The workaround process to accomplish cleanup of old editions is to connect to APPS account via sqlplus and execute the following
$ sqlplus apps/**** ----------------------------------------------------------------- exec ad_zd.set_edition('PATCH') declare cursor FPATYPES is select object_name from user_objects where object_type='TYPE' and object_name like 'FPA%'; begin for rec in fpatypes loop execute immediate 'alter type '||rec.object_name||' compile'; end loop; end; / |
Please note that it’s not required to run actualize_all phase and finalize and cleanup phases in full mode every patching cycle. I did it to get rid of old patching editions in the database.
{ echo $appspass; echo $systempass; echo $wlspass; } | adop phase=finalize finalize_mode=full { echo $appspass; echo $systempass; echo $wlspass; } | adop phase=cutover source ~/EBSapps.env run { echo $appspass; echo $systempass; echo $wlspass; } | adop phase=cleanup cleanup_mode=full { echo $appspass; echo $systempass; echo $wlspass; } | adop phase=fs_clone |
Import Enterprise Command Center Applications
Copy $ECC_BASE/Oracle/quickInstall/scripts/patchEccFiles.pl script from ecc host to EBS host.
Login to EBS server and apply run fs environment.
[oracle@demo ~]$ . ./EBSapps.env run |
Create empty staging directory.
[oracle@demo scripts]$ mkdir /tmp/staging |
Run patchEccFiles.pl script
[oracle@demo tmp]$ ./patchEccFiles.pl Enter temporary directory for ECC Files (Should be used only for this task and be empty): /tmp/staging Enter EBS DB apps user id (default: apps) : Enter EBS DB apps user password: List of languages installed in EBS: -------------------------------------------------- | Language| ECC Language Code| -------------------------------------------------- | ARABIC | ar | | GERMAN | de | | FRENCH | fr | | AMERICAN | en | | SIMPLIFIED CHINESE | zh-Hans | --------------------------------------------------- List of languages supported in ECC: Arabic(ar), Brazilian Portugese(pt), Canadian French(fr-CA),Croatian(hr), Cyrillic Kazakh(kk), Cyrillic Serbian(sr), Czech(cs), Danish(da), Dutch(nl), English(en), Finnish(fi), French(fr), German(de), Greek(el), Hebrew(he), Hungarian(hu), Indonesian(id), Italian(it), Japanese(ja), Korean(ko), Latin Spanish(es-419),Latin Serbian(sr-Latn), Lithuanian(lt), Norwegian(no), Polish(pl), Portugese(pt-PT),Romania(ro), Russian(ru), Simplified Chinese(zh-Hans), Slovak(sk), Slovenian(sl), Spanish(es), Swedish(sv), Thai(th), Traditional Chinese(zh-Hant), Turkish(tr), Ukranian(uk), Vietnamese(vi) NOTE: Only languages installed and enabled in ECC will be processed successfully Example: Enter ar,pt for Arabic and Brazilian Portugese language respectively. Enter all(ALL) for all languages Enter the Language code(s) from the list mentioned above to run the translation for: Do you want to add all products at once(Y) or specify the subset(N): Y Adding product top AP Adding product top AR Adding product top BOM Adding product top CN Adding product top CS Adding product top EAM Adding product top FA Adding product top GMO Adding product top ICX Adding product top INV Adding product top JMF Adding product top OKL Adding product top OKS Adding product top ONT Adding product top OZF Adding product top PA Adding product top PO Adding product top WIP Importing application /tmp/staging/ap/12.0.0/patch/115/ecc/applications/ap_ecc.zip ECC WEB ENTRY URL:http://demo.enginatics.com:80/ecc ECC Application File:/tmp/staging/ap/12.0.0/patch/115/ecc/applications/ap_ecc.zip Importing file /tmp/staging/ap/12.0.0/patch/115/ecc/applications/ap_ecc.zip finished with response [{"STATUS":200,"logFileName":"import_20190529095220.log"}] Imported application /tmp/staging/ap/12.0.0/patch/115/ecc/applications/ap_ecc.zip successfully Importing application /tmp/staging/ar/12.0.0/patch/115/ecc/applications/ar_ecc.zip ECC WEB ENTRY URL:http://demo.enginatics.com:80/ecc ECC Application File:/tmp/staging/ar/12.0.0/patch/115/ecc/applications/ar_ecc.zip Importing file /tmp/staging/ar/12.0.0/patch/115/ecc/applications/ar_ecc.zip finished with response [{"STATUS":200,"logFileName":"import_20190529095227.log"}] Imported application /tmp/staging/ar/12.0.0/patch/115/ecc/applications/ar_ecc.zip successfully Importing application /tmp/staging/fa/12.0.0/patch/115/ecc/applications/fa_ecc.zip ECC WEB ENTRY URL:http://demo.enginatics.com:80/ecc ECC Application File:/tmp/staging/fa/12.0.0/patch/115/ecc/applications/fa_ecc.zip Importing file /tmp/staging/fa/12.0.0/patch/115/ecc/applications/fa_ecc.zip finished with response [{"STATUS":200,"logFileName":"import_20190529095228.log"}] Imported application /tmp/staging/fa/12.0.0/patch/115/ecc/applications/fa_ecc.zip successfully Importing application /tmp/staging/okl/12.0.0/patch/115/ecc/applications/okl_ecc.zip ECC WEB ENTRY URL:http://demo.enginatics.com:80/ecc ECC Application File:/tmp/staging/okl/12.0.0/patch/115/ecc/applications/okl_ecc.zip Importing file /tmp/staging/okl/12.0.0/patch/115/ecc/applications/okl_ecc.zip finished with response [{"STATUS":200,"logFileName":"import_20190529095229.log"}] Imported application /tmp/staging/okl/12.0.0/patch/115/ecc/applications/okl_ecc.zip successfully SUMMARY REPORT: ----------------------------------------------- | Product| Application | Status| ----------------------------------------------- | AP | ap_ecc.zip | Success | | AR | ar_ecc.zip | Success | | FA | fa_ecc.zip | Success | | OKL | okl_ecc.zip | Success | ----------------------------------------------- |
Loading product data to ECC
Run concurrent programs for each product to perform full data load into the ECC. Programs should also be scheduled to perform periodic incremental loads to update the data. For the full list of the loader concurrent programs please refer to Doc ID 2495053.1. For an overview of the many different load programs, you can also use the ECC Concurrent Programs report to check which ones are already scheduled.
Example for the Oracle Receivables : Receivables Command Center Data Load
To run this request you need to switch to Receivables responsibility as it’s not available under System Administrator responsibility. I used ‘Receivables manager’ responsibility.
To update data, requests can be rerun in INCREMENTAL_LOAD mode. Example of Payables Command Center Data Load:
Providing users access to ECC
This step needs to be performed for the new command centers after the upgrade. Also perform this step if you notice any changes in the roles, responsibilities or permission sets names provided in the MOS Doc ID 2495053.1.
Product-specific roles are used to provide access to ECC.
For list of the roles please refer to Doc ID 2495053.1.
Below is the example of role assignment performed in our system.
Providing access manually
In Oracle E-Business Suite, log in to the User Management responsibility, and navigate to the Roles and Role Inheritance page.
Search for desired responsibility
Click the “View In Hierarchy” icon for your responsibility
Click the Add Node icon for your responsibility
Search for the role you want to add and click ‘Select’
Next step is to update the associated grant for the product-specific Enterprise Command Center roles to reference the specific responsibility as the security context.
Click on expand to see the added role and click on update icon for the new role:
If this is the first responsibility to which you are adding to the role, click the Update icon for the grant you want to update.
Enter the name of the responsibility to which ECC role is added and click Apply
After this step Receivables Command Center should appear under Receivables Manager responsibility.
Note: If you don’t see function appear after the responsibility, you may need to clear EBS cache using Functional Administrator responsibility.
Automating access provision using script
To automate roles and grants configuration following script can be used. It should be ran from EBS run fs:
source EBSapps.env run $FND_TOP/bin/UMX_ENDECA_RBACAuto.sh |
It will prompt for csv file location, which should be prepared before running the script. If csv file is called UMX_ENDECA_RBAC.csv and located under same directory as UMX_ENDECA_RBACAuto.sh, it will be used automatically. Example of the file we used in our system to assign payables and receivables ecc roles to Payables manager, Receivables manager and ECC Developer:
PERMISSION_SET_CODE,RESPONSIBILITY_CODE,ENDECA_ROLE_CODE AP_ECC_ACCESS_PS,FND_RESP|SQLAP|PAYABLES_MANAGER|STANDARD,UMX|AP_ECC_ACCESS_ROLE AP_ECC_ACCESS_PS,FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD,UMX|AP_ECC_ACCESS_ROLE AR_ECC_ACCESS_PS,FND_RESP|AR|RECEIVABLES_MANAGER|STANDARD,UMX|AR_ECC_ACCESS_ROLE AR_ECC_ACCESS_PS,FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD,UMX|AR_ECC_ACCESS_ROLE IAR_ECC_ACCESS_PS,FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD,UMX|IAR_ECC_ACCESS_ROLE IAR_ECC_INT_ACCESS_PS,FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD,UMX|IAR_ECC_INT_ACCESS_ROLE |
Example output:
[oracle@demo bin]$ ./UMX_ENDECA_RBACAuto.sh APPS username: apps APPS password: Executing for Permission_set AP_ECC_ACCESS_PS , Responsibility_name FND_RESP|SQLAP|PAYABLES_MANAGER|STANDARD and Endeca_Role UMX|AP_ECC_ACCESS_ROLE old 6: L_MENU_NAME varchar2(100) := '&1'; new 6: L_MENU_NAME varchar2(100) := 'AP_ECC_ACCESS_PS'; old 8: l_responsibility_name varchar2(300) := '&2'; new 8: l_responsibility_name varchar2(300) := 'FND_RESP|SQLAP|PAYABLES_MANAGER|STANDARD'; old 10: endeca_role_name varchar2(300) := '&3'; new 10: endeca_role_name varchar2(300) := 'UMX|AP_ECC_ACCESS_ROLE'; Completed Successfully. PL/SQL procedure successfully completed. Executing for Permission_set AP_ECC_ACCESS_PS , Responsibility_name FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD and Endeca_Role UMX|AP_ECC_ACCESS_ROLE old 6: L_MENU_NAME varchar2(100) := '&1'; new 6: L_MENU_NAME varchar2(100) := 'AP_ECC_ACCESS_PS'; old 8: l_responsibility_name varchar2(300) := '&2'; new 8: l_responsibility_name varchar2(300) := 'FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD'; old 10: endeca_role_name varchar2(300) := '&3'; new 10: endeca_role_name varchar2(300) := 'UMX|AP_ECC_ACCESS_ROLE'; Completed Successfully. PL/SQL procedure successfully completed. Executing for Permission_set AR_ECC_ACCESS_PS , Responsibility_name FND_RESP|AR|RECEIVABLES_MANAGER|STANDARD and Endeca_Role UMX|AR_ECC_ACCESS_ROLE old 6: L_MENU_NAME varchar2(100) := '&1'; new 6: L_MENU_NAME varchar2(100) := 'AR_ECC_ACCESS_PS'; old 8: l_responsibility_name varchar2(300) := '&2'; new 8: l_responsibility_name varchar2(300) := 'FND_RESP|AR|RECEIVABLES_MANAGER|STANDARD'; old 10: endeca_role_name varchar2(300) := '&3'; new 10: endeca_role_name varchar2(300) := 'UMX|AR_ECC_ACCESS_ROLE'; Role - Responsibility relationship already exists Grant already exists PL/SQL procedure successfully completed. Executing for Permission_set AR_ECC_ACCESS_PS , Responsibility_name FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD and Endeca_Role UMX|AR_ECC_ACCESS_ROLE old 6: L_MENU_NAME varchar2(100) := '&1'; new 6: L_MENU_NAME varchar2(100) := 'AR_ECC_ACCESS_PS'; old 8: l_responsibility_name varchar2(300) := '&2'; new 8: l_responsibility_name varchar2(300) := 'FND_RESP|FND|ECC_DEVELOPER_RESP|STANDARD'; old 10: endeca_role_name varchar2(300) := '&3'; new 10: endeca_role_name varchar2(300) := 'UMX|AR_ECC_ACCESS_ROLE'; Completed Successfully. PL/SQL procedure successfully completed. |
Access provision for all command centers.
I prepared UMX_ENDECA_RBAC.csv containing all responsibilities, permission sets and roles matched between each other.
QP_ECC_PS,FND_RESP|QP|QP_SSA_PRICING_USER|STANDARD,UMX|QP_ECC_ACCESS_ROLE CSE_ECC_ACCESS_PS,FND_RESP|CSE|CSE_SUPER_USER_RESP|STANDARD,UMX|CSE_ECC_ACCESS_ROLE FA_ECC_ACCESS_PS,FND_RESP|OFA|FIXED_ASSETS_MANAGER|STANDARD,UMX|FA_M_ECC_ACCESS_ROLE FA_ECC_ACC_ACCESS_PS,FND_RESP|OFA|FIXED_ASSETS_ACCOUNTANT|STANDARD,UMX|FA_A_ECC_ACCESS_ROLE OZF_NEW_ECC_MENU,FND_RESP|OZF|OZF_USER|STANDARD,UMX|OZF_ECC_ACCESS_ROLE OZF_NEW_ECC_MENU,FND_RESP|OZF|OZF_AR_DED_SET_RESP|STANDARD,UMX|OZF_ECC_ACCESS_ROLE PO_CLM_ECC_CO_PS,FND_RESP|PO|PUR_CLM_SUPER_USER|STANDARD,UMX|PO_CLM_ECC_CO_ROLE PO_CLM_ECC_PMO_PS,FND_RESP|ICX|SELF_SERV_CLM_PURCHASING_5|STANDARD,UMX|PO_CLM_ECC_PMO_ROLE CST_ECC_ACCESS_PS,FND_RESP|BOM|COST_MANAGEMENT|STANDARD,UMX|CST_ECC_ACCESS_ROLE CST_ECC_ACCESS_PS,FND_RESP|CST|COST_MANAGEMENT|STANDARD,UMX|CST_ECC_ACCESS_ROLE CST_ECC_ACCESS_PS,FND_RESP|GMF|OPM_FINANCIALS|STANDARD,UMX|CST_ECC_ACCESS_ROLE CST_ECC_GMF_ACCESS_PS,FND_RESP|BOM|COST_MANAGEMENT|STANDARD,UMX|CST_ECC_GMF_ACCESS_ROLE CST_ECC_GMF_ACCESS_PS,FND_RESP|CST|COST_MANAGEMENT|STANDARD,UMX|CST_ECC_GMF_ACCESS_ROLE CST_ECC_GMF_ACCESS_PS,FND_RESP|GMF|OPM_FINANCIALS|STANDARD,UMX|CST_ECC_GMF_ACCESS_ROLE CSD_ECC_RO_MGR_ACCESS_PS,FND_RESP|CSD|DEPOT REPAIR|STANDARD,UMX|CSD_ECC_RO_MGR_ACCESS_ROLE CSD_ECC_RO_TECH_ACCESS_PS,FND_RESP|CSD|DEPOT REPAIR|STANDARD,UMX|CSD_ECC_RO_TECH_ACCESS_ROLE WIP_ECC_ACCESS_PERM_SET,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|WIP_ECC_ACCESS_ROLE WIP_GNT_ECC_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|WIP_GNT_ECC_ACCESS_ROLE WIP_COMP_ECC_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|WIP_COMP_ECC_ACCESS_ROLE EAM_ECC_ACCESS_PS,FND_RESP|EAM|MSU_VIS_OPS|STANDARD,UMX|EAM_ECC_ACCESS_ROLE CSF_ECC_TASK_PS,FND_RESP|CSF|CONTROL TOWER|STANDARD,CSF_ECC_TASK_ACCESS_ROLE PER_ECC_PERSON_SEARCH_PS,FND_RESP|PER|US_SHRMS_MANAGER|STANDARD,UMX|PER_ECC_PEOPLE_SEARCH_ROLE CN_ICM_ECC_ACCESS_PS,FND_RESP|CN|CN_INC_COMP_MANAGER|STANDARD,UMX|CN_ICM_ECC_ACCESS_ROLE INV_ECC_RCV_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,INV_ECC_RCV_ACCESS_ROLE WSH_ECC_DASHBOARD_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,UMX|WSH_ECC_DASHBOARD_ACCESS_ROLE INV_ECC_AGING_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,INV_ECC_AGING_ACCESS_ROLE INV_ECC_CYCLE_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,INV_ECC_CYCLE_COUNTING_ACCESS_ROLE INV_ECC_ACTIVITY_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,INV_ECC_ACTIVITY_ACCESS_ROLE INV_ECC_ITEM_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,INV_ECC_ITEM_ACCESS_ROLE INV_ECC_RSV_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,UMX|INV_ECC_RSV_ACCESS_ROLE INV_ECC_SLOT_ACCESS_PS,FND_RESP|INV|INV_HTML|STANDARD,UMX|INV_ECC_SLOT_ACCESS_ROLE INV_ECC_RCV_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,INV_ECC_RCV_ACCESS_ROLE WSH_ECC_DASHBOARD_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|WSH_ECC_DASHBOARD_ACCESS_ROLE INV_ECC_AGING_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,INV_ECC_AGING_ACCESS_ROLE INV_ECC_CYCLE_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,INV_ECC_CYCLE_COUNTING_ACCESS_ROLE INV_ECC_ACTIVITY_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,INV_ECC_ACTIVITY_ACCESS_ROLE INV_ECC_ITEM_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,INV_ECC_ITEM_ACCESS_ROLE INV_ECC_RSV_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|INV_ECC_RSV_ACCESS_ROLE INV_ECC_SLOT_ACCESS_PS,FND_RESP|MSC|MFG_AND_DIST_SUPER_USER_APS|STANDARD,UMX|INV_ECC_SLOT_ACCESS_ROLE INV_ECC_RCV_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,INV_ECC_RCV_ACCESS_ROLE WSH_ECC_DASHBOARD_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,UMX|WSH_ECC_DASHBOARD_ACCESS_ROLE INV_ECC_AGING_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,INV_ECC_AGING_ACCESS_ROLE INV_ECC_CYCLE_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,INV_ECC_CYCLE_COUNTING_ACCESS_ROLE INV_ECC_ACTIVITY_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,INV_ECC_ACTIVITY_ACCESS_ROLE INV_ECC_ITEM_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,INV_ECC_ITEM_ACCESS_ROLE INV_ECC_RSV_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,UMX|INV_ECC_RSV_ACCESS_ROLE INV_ECC_SLOT_ACCESS_PS,FND_RESP|EGO|EGO_ITEMS_RESP|STANDARD,UMX|INV_ECC_SLOT_ACCESS_ROLE ICX_ECC_ACCESS_PS,FND_RESP|ICX|SELF_SERVICE_PURCHASING_5|STANDARD,UMX|ICX_ECC_ACCESS_ROLE IAR_ECC_ACCESS_PS,FND_RESP|AR|ARI_EXTERNAL|STANDARD,UMX|IAR_ECC_ACCESS_ROLE IAR_ECC_INT_ACCESS_PS,FND_RESP|AR|ARI_INTERNAL|STANDARD,UMX|IAR_ECC_INT_ACCESS_ROLE INL_LCA_ECC_ACCESS_PS,FND_RESP|INL|INL|STANDARD,INL_LCA_ECC_ACCESS_ROLE OKL_ECC_OKL_PS,FND_RESP|OKL|LEASE SUPER USER|STANDARD,UMX|OKL_ECC_ACCESS_ROLE PN_ECC_PN_PS,FND_RESP|PN|PN_SU|STANDARD,UMX|PN_ECC_ACCESS_ROLE ONT_ECC_PS,FND_RESP|ONT|ONT_HTMLUI_RESP|STANDARD,UMX|ONT_ECC_ROLE JMF_ECC_ACCESS_PS,FND_RESP|JMF|JMF_SHIKYU_SUPER_USER|STANDARD,UMX|JMF_ECC_ACCESS_ROLE AP_ECC_ACCESS_PS,FND_RESP|SQLAP|PAYABLES_MANAGER|STANDARD,UMX|AP_ECC_ACCESS_ROLE GMO_ECC_ACCESS_PS,FND_RESP|GME|PRODUCTION SUPERVISOR|STANDARD,UMX|GMO_ECC_ACCESS_ROLE GMD_ECC_ACCESS_PS,FND_RESP|GMD|GMD_QUALITY_MANAGER|STANDARD,UMX|GMD_PQ_ECC_ACCESS_ROLE PJM_ECC_ACCESS_PS,FND_RESP|PJM|PROJECT_MFG_SUPER_USER|STANDARD,UMX|PJM_ECC_ACCESS_ROLE PA_PPCC_ECC_ACCESS_PS,FND_RESP|PA|PA_PRM_PROJ_SU_SVCS|STANDARD,UMX|PA_PPCC_ECC_ACCESS_ROLE PO_PPCC_ECC_ACCESS_PS,FND_RESP|PO|PO_PROJ_PROC_ECC_BUYER|STANDARD,UMX|PO_PPCC_ECC_ACCESS_ROLE PA_ECC_ACCESS_PS,FND_RESP|PA|PA_PRM_PROJ_SU_SVCS|STANDARD,UMX|PA_ECC_ACCESS_ROLE PA_ECC_FED_ACCESS_PS,FND_RESP|PA|PROJECTS_US_FEDERAL|STANDARD,UMX|PA_ECC_FED_ACCESS_ROLE PO_PCC_ECC_PS,FND_RESP|PO|PURCHASING_OPERATIONS|STANDARD,UMX|PO_PCC_ECC_ROLE QA_ECC_ACCESS_PS,FND_RESP|QA|QA_SSQR_JSP|STANDARD,UMX|QA_ECC_ACCESS_ROLE AR_ECC_ACCESS_PS,FND_RESP|AR|RECEIVABLES_MANAGER|STANDARD,UMX|AR_ECC_ACCESS_ROLE CS_ECC_SR_MGR_PS,FND_RESP|CS|CS_ECC_SERVICE_MANAGER|STANDARD,UMX|CS_ECC_SR_MGR_ACCESS_ROLE CS_ECC_SR_MGR_PS,FND_RESP|CS|CSZ_CS_SPECIALIST|STANDARD,UMX|CS_ECC_SR_MGR_ACCESS_ROLE CS_ECC_SR_AGNT_PS,FND_RESP|CS|CSZ_CS_SPECIALIST|STANDARD,UMX|CS_ECC_SR_AGNT_ACCESS_ROLE OKS_ECC_ACCESS,FND_RESP|OKS|OKS_MANAGER|STANDARD,UMX|OKS_ECC_ACCESS_ROLE |
Clear cache
Command centers didn’t appear under the responsibilities after running above script. It was fixed by clearing EBS cache using Functional Administrator responsibility.
Conclusion
At this stage ECC installation and integration is complete. Reminding you again that you can try ECC in our demo instance. Just log in as DEVELOPER and choose desired product responsibility and find associated command center menu entry.
Please leave your comments if this article helped you or you faced any issues – we’re always happy to help you.
And please check out Blitz Report which complements ECC nicely with the fast excel export feature.
Hi,
facing applying patch error need help
AutoPatch error:
——–
Missing prerequisite codelevel for entity ‘scm_pf’.
This patch requires the following codelevel or higher: ‘R12.SCM_PF.C.9’.
The current on-site codelevel for the entity ‘scm_pf’ is : ‘R12.SCM_PF.C.7’.
In order to apply this patch you must first apply a patch that introduces
at least the minimum required codelevel.
Hi
Please follow the instructions from the error message: Apply R12.SCM_PF.C.9 or higher
Thank you,
Alex
Hi,
Install fresh and all steps are sucessfull , my ebs apps version 12.2.10 and ecc is 6 , at the end I removed # from autoconfig and save it but after run its appear again
and its did not generate ecc.conf file, I manul remove my $CONFTEX_FILE , both fs1 and fs2 as run after it autoconfige then check its again appear # into contex file
need help so I can move forward
Regard
Kunwar
Hi Kunwar
Please ensure that you remove # using OAM EBS web interface, then run autoconfig.
As sometimes after manual context file changes on Linux they’re reverted back during autoconfig.
Thank you,
Alex
Hello,
for instillation fresh version 6 facing below issue
facing this issue while importing language
————————————————–
Use of uninitialized value in printf at patchEccFiles.pl line 451, line 2.
| select NLS_LANGUAGE | |
Use of uninitialized value in concatenation (.) or string at patchEccFiles.pl line 452, line 2.
Use of uninitialized value in printf at patchEccFiles.pl line 451, line 2.
| * | |
Use of uninitialized value in concatenation (.) or string at patchEccFiles.pl line 452, line 2.
Use of uninitialized value in printf at patchEccFiles.pl line 451, line 2.
| ERROR at line 1: | |
Use of uninitialized value in concatenation (.) or string at patchEccFiles.pl line 452, line 2.
Use of uninitialized value in printf at patchEccFiles.pl line 451, line 2.
| ORA-00904: “FND_ECC_UTIL_MLS_PVT”.”CONVERTORALANGCODETOBCP47″: invalid | |
Use of uninitialized value in concatenation (.) or string at patchEccFiles.pl line 452, line 2.
| identifier | |
Hi
Please make sure that all EBS patches are applied as per Doc ID 2495053.1
For example for ECC V5 FND_ECC_UTIL_MLS_PVT package definition is contained in the following patch:
30535550: ATG ECC ADAPTER PATCH – V5
File name: 30535550/fnd/patch/115/sql/FNDECCMLSUTB.pls
Looks like you faced the same error some time ago:
https://www.enginatics.com/blog/oracle-enterprise-command-center/oracle-enterprise-command-center-framework-release-12-2-installation-and-integration-with-oracle-ebs-12-2-8/#comments
Regards,
Alex
