Upgrading an Oracle E-Business Suite server from Oracle Linux 7 to Oracle Linux 8

Introduction

Oracle EBS 12.2 has been certified with Oracle Linux 8 for quite some time now. One thing that could hold you back from the operating system upgrade is the requirement to clone the EBS instance to a new server. Leapp application simplifies the process by supporting in-place upgrades for EBS 12.2. In this article I will describe the required steps for upgrading from Oracle Linux 7 to Oracle Linux 8 with Oracle E-Business Suite 12.2 installed on the server.

1 References

Oracle E-Business Suite Installation and Upgrade Notes Release 12 (12.2) for Linux x86-64 (Doc ID 1330701.1)
In-Place Upgrade from Oracle Linux 7 to 8 Now Certified for EBS 12.2
Upgrade Oracle Linux with Leapp
Upgrading Systems With Leapp
Leapp : Upgrade Oracle Linux 7 (OL7) to Oracle Linux 8 (OL8)
Secure Your Patch Future: The Technical Path to Oracle Linux 8 for E-Business Suite (on OCI)

2 Test environment details

The action plan has been tested in the following environment:

Operating system: Oracle Linux Server release 7.9
Application version: Oracle E-Business Suite 12.2.13
Virtualization technology: VirtualBox 7.1.8 or Xen Server 8.
System architecture: EBS and Database are located on the same server.

3 Take a backup

Before proceeding with the changes, take a backup of the server. If it is a virtual machine, the easiest would be to take a snapshot.

4 Apply the required EBS patches

Review the following Oracle Doc:
Oracle E-Business Suite Installation and Upgrade Notes Release 12 (12.2) for Linux x86-64 (Doc ID 1330701.1)

Apply any required patches for running EBS 12.2 on Oracle Linux 8

4.1 Apply FMW Patch (Oracle Linux 8, RHEL 8 and SLES 15 only)

Customers on existing 12.2 systems who are cloning or performing an in-place OS upgrade to the above operating systems must first apply the following patches on the source 12.2 environment:

Patch 32931976 following the associated README file.
Without this patch, you will see the known issue of a blank page when viewing a concurrent requests output or log.

If you choose to apply the patch directly to the run file system, stop the application tier services. Otherwise source the patch filesystem environment and then perform a cutover.

source EBSapps.env run
unzip p32931976_R12_GENERIC.zip
unzip p31090393_1036_Linux-x86-64.zip
cp -v patch-catalog_27387.xml EG54.jar $FMW_HOME/utils/bsu/cache_dir/
cd $FMW_HOME/utils/bsu
$FMW_HOME/utils/bsu/bsu.sh -install -patchlist=EG54 -prod_dir=$FMW_HOME/wlserver_10.3

4.2 Apply Oracle Web Tier Pre-install check patch (Oracle Linux 8, RHEL 8, SLES 12 and 15 only)

Customers on existing 12.2 systems who are cloning or performing an in-place OS upgrade to the above operating systems must first apply Patch 33471111 on the source 12.2 environment with the following steps:

Back up the contents of the “prereq” directory under /webtier/inventory/Scripts on both the Run and Patch filesystems of the 12.2 environment.
Unzip the patch and copy the “prereq” directory in the patch to replace the above on both the Run and Patch filesystems of the 12.2 environment.
Run adpreclone.pl on the application tier to update files in , following Section 3.2.1 in My Oracle Support Knowledge Document 1383621.1, Cloning Oracle E-Business Suite Release 12.2 with Rapid Clone.
Without this, cloning to this OS will fail due to incorrect rpm checks for the OS.

source EBSapps.env run
mv $FMW_HOME/webtier/inventory/Scripts/prereq $FMW_HOME/webtier/inventory/Scripts/backup_prereq
unzip p33471111_111190_Generic.zip
cp -R prereq/ $FMW_HOME/webtier/inventory/Scripts/
cd $ADMIN_SCRIPTS_HOME && perl adpreclone.pl appsTier

5 Stop EBS and Database

It is required before updating the Linux packages.

6 Enable leapp repository

Add ol7_leapp repository in the current repo file, e.g. /etc/yum.repos.d/oracle-linux-ol7.repo or /etc/yum.repos.d/public-yum-ol7.repo

[ol7_leapp]
name=Leapp Upgrade Utilities for Oracle Linux $releasever ($basearch)
baseurl=https://yum$ociregion.oracle.com/repo/OracleLinux/OL7/leapp/$basearch/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-oracle
gpgcheck=1
enabled=1

7 Verify that the system locale is set to en_US.UTF-8

cat /etc/locale.conf

8 Update to latest packages

Update all system packages to the latest versions.

sudo yum update -y

9 Enable root login

sudo sed -i 's/#PermitRootLogin yes/PermitRootLogin yes/' /etc/ssh/sshd_config
sudo passwd

10 Reboot the server

reboot

11 Install the Leapp Utility

Install the Leapp utility and its supporting repositories.

sudo yum install -y leapp-upgrade --enablerepo=ol7_leapp,ol7_latest

12 Run the preupgrade check

sudo leapp preupgrade --oraclelinux

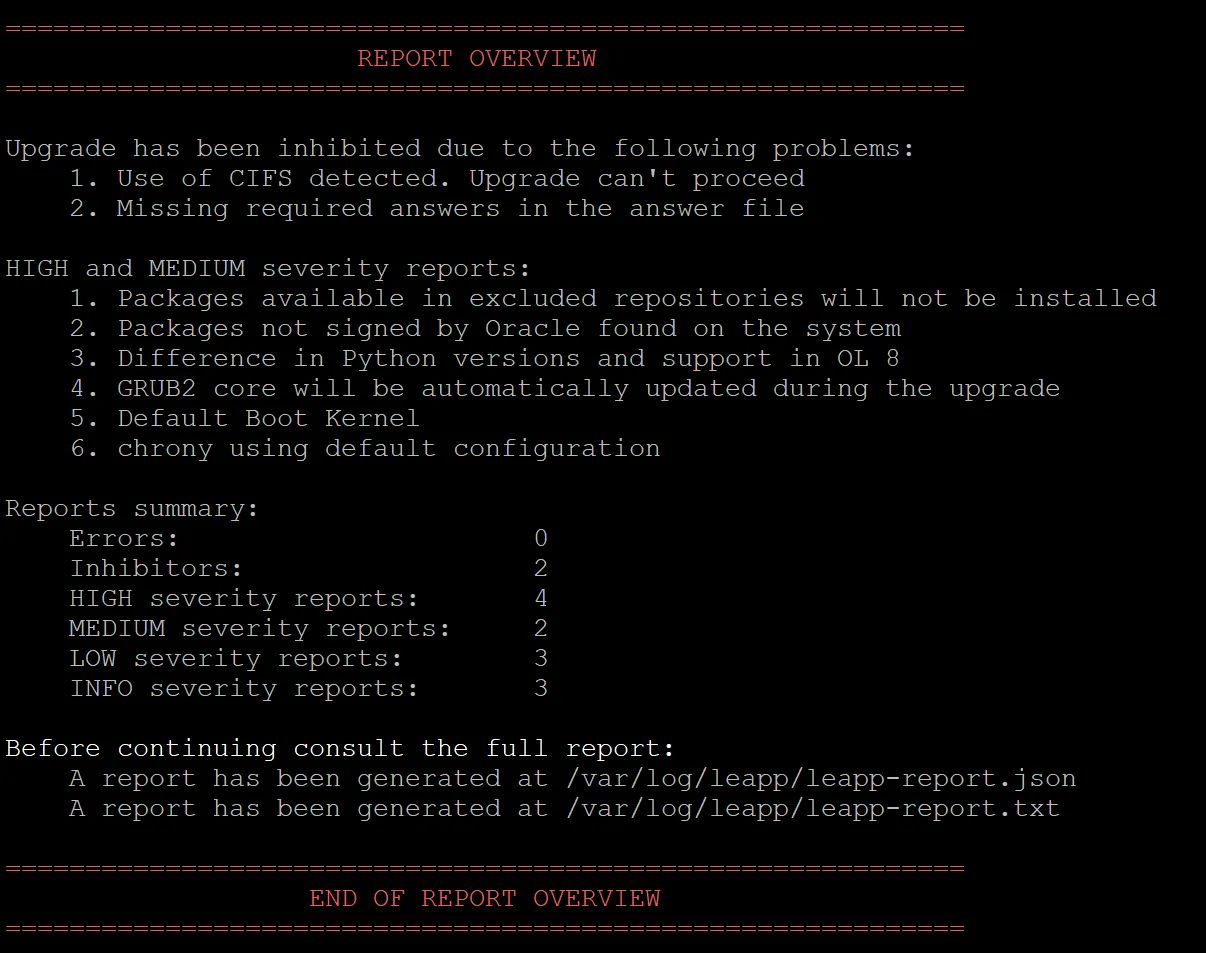

Review the command output:

13 Review the preupgrade report

cat /var/log/leapp/leapp-report.txt

14 Fix any issues in the preupgrade report

You must fix at least all inhibitors before leapp can proceed. Below I provide sample issues and solutions.

14.1 Title: Use of CIFS detected. Upgrade can’t proceed

Solution: Comment any CIFS shares in the /etc/fstab

#//storageprovider.com/backup /backup      cifs    iocharset=utf8,rw,noperm,uid=applmgr,gid=oinstall,file_mode=0777,dir_mode=0777 0  0

Umount any mounted CIFS (NFS) shares. E.g:

umount /backup

14.2 Title: Missing required answers in the answer file

Solution: run the following command as suggested by the report:

leapp answer --section remove_pam_pkcs11_module_check.confirm=True

14.3 Title: Packages not signed by Oracle found on the system

Solution: Remove the reported packages that are not required after upgrade. E.g:

yum remove stalonetray xe-guest-utilities xe-guest-utilities-xenstore zabbix-agent zabbix-release libreoffice7.6 libreoffice7.6-freedesktop-menus libreoffice7.6-ure libobasis7.2-ooofonts libobasis7.6-ooofonts

15 Remove the EBS preinstall package

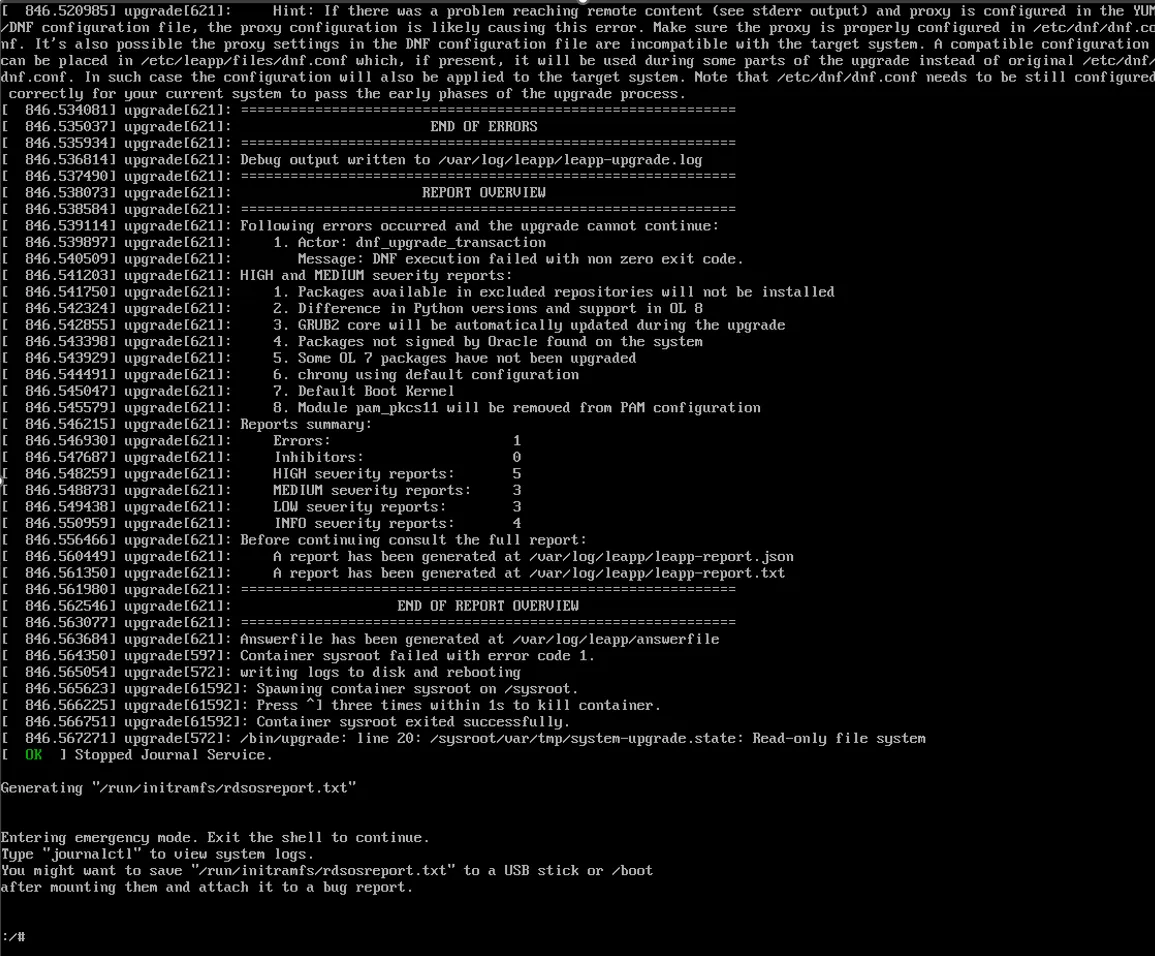

This step is optional if you face the same issue I faced during the upgrade:

Error in PREUN scriptlet in rpm package oracle-ebs-server-R12-preinstall
Following errors occurred and the upgrade cannot continue:
1. Actor: dnf_upgrade_transaction
Message: DNF execution failed with non zero exit code

The following workaround helped:

sudo rpm -e --noscripts oracle-ebs-server-R12-preinstall

Note: noscripts option is required as without it the following error is reported:

sudo rpm -e  oracle-ebs-server-R12-preinstall
error: %preun(oracle-ebs-server-R12-preinstall-1.0-5.el7.x86_64) scriptlet failed, exit status 1
error: oracle-ebs-server-R12-preinstall-1.0-5.el7.x86_64: erase failed

16 Run the upgrade

sudo leapp upgrade --oraclelinux

After the above command completes, it prints the following message:

Complete!
        add_upgrade_boot_entry
        Add new boot entry for Leapp provided initramfs.
A reboot is required to continue. Please reboot your system.

Debug output written to /var/log/leapp/leapp-upgrade.log

16.1 Restart the system

sudo reboot

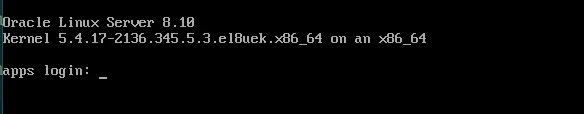

The actual upgrade will start after the reboot. It will take some time. After it completes, the system will boot the upgraded OEL/RHEL 8.

17 Review the upgrade report and fix any issues

At the end of execution leapp writes a status report: /var/log/leapp/leapp-report.txt
Review it and remediate the issues. Here is the example from my VM.

17.1 Difference in Python versions and support in OL 8

Risk Factor: high
Title: Difference in Python versions and support in OL 8
Summary: In OL 8, there is no 'python' command. Python 3 (backward incompatible) is the primary Python version and Python 2 is available with limited support and limited set of packages. If you no longer require Python 2 packages following the upgrade, please remove them. Read more here: https://docs.oracle.com/en/operating-systems/oracle-linux/8/python/
Related links:
    - Difference in Python versions and support in OL 8: https://docs.oracle.com/en/operating-systems/oracle-linux/8/python/
Remediation: [hint] Please run "alternatives --set python /usr/bin/python3" after upgrade
Key: 2f3a43f4f448995eec953217d54f388ed94838b2

Solution

Run the suggested remediation command:

alternatives --set python /usr/bin/python3

17.2 Some OL 7 packages have not been upgraded

Risk Factor: high
Title: Some OL 7 packages have not been upgraded
Summary: Following OL 7 packages have not been upgraded:
openmotif21-2.1.30-11.el7
kernel-3.10.0-1160.11.1.el7
kernel-3.10.0-1160.119.1.0.5.el7
xorg-x11-apps-7.7-7.el7
compat-libstdc++-296-2.96-144.0.2.el7
kernel-uek-5.4.17-2036.101.2.el7uek
leapp-upgrade-el7toel8-0.20.0-2.0.10.el7_9
kernel-uek-5.4.17-2136.338.4.2.el7uek
Please remove these packages to keep your system in supported state.

Key: 1e4e21ca7b2b7d9c59556f4b9813ef0d801af32c

Solution:

Remove the repoted packages

yum remove --disableexcludes=all openmotif21-2.1.30-11.el7 kernel-3.10.0-1160.11.1.el7 kernel-3.10.0-1160.119.1.0.5.el7 xorg-x11-apps-7.7-7.el7 compat-libstdc++-296-2.96-144.0.2.el7 kernel-uek-5.4.17-2036.101.2.el7uek leapp-upgrade-el7toel8-0.20.0-2.0.10.el7_9 kernel-uek-5.4.17-2136.338.4.2.el7uek

17.3 SElinux will be set to permissive mode

Risk Factor: low
Title: SElinux will be set to permissive mode
Summary: SElinux will be set to permissive mode. Current mode: enforcing. This action is required by the upgrade process to make sure the upgraded system can boot without beinig blocked by SElinux rules.
Remediation: [hint] Make sure there are no SElinux related warnings after the upgrade and enable SElinux manually afterwards. Notice: You can ignore the “/root/tmp_leapp_py3” SElinux warnings.

Solution:

Enable SElinux by setting SELINUX=enforcing in /etc/selinux/config

18 Remove OL7 repositories

Review the available repositories in the “/etc/yum.repos.d” directory, and remove any OL7 repositories.

cd /etc/yum.repos.d
ls
rm -f oracle-linux-ol7.repo.disabled public-yum-ol7.repo uek-ol7.repo.disabled virt-ol7.repo.disabled leapp-upgrade-repos-ol8.repo.save
ls
oracle-linux-ol8.repo  uek-ol8.repo  virt-ol8.repo

19 Uninstall leapp

rpm -qa | grep leap
sudo yum remove leapp-repository-deps-el8 leapp-upgrade-el7toel8 leapp leapp-deps-el8 python2-leapp --disableexcludes=all python2-leapp-0.17.0-1.0.2.el7_9.noarch
rpm -qa | grep leap
sudo rm -rf /root/tmp_leapp_py3

20 Install Oracle E-Business Suite Preinstallation RPM

dnf config-manager --set-enabled ol8_addons
dnf install oracle-ebs-server-R12-preinstall.x86_64

21 Install other necessary tools

dnf install tmux net-tools

22 Start the database

As my test server hosts both EBS and Database this step is required now to run adadmin. It may not be required if you are upgrading a server hosting only EBS apps.

23 Re-link E-Business Suite Executables

Now you need to relink the executables after the OS upgrade.

adadmin

2. Maintain Applications Files menu
1. Relink Applications programs
Do you wish to proceed with the relink [Yes] ? Yes
File name [EBSDB_demo.env] : EBSDB_demo.env
Enter list of products to link ('all' for all products) [all] : all
Generate specific executables for each selected product [No] ? No
Relink with debug information [No] ? No

24 Verify the libXm link existense

ls -ltr /usr/lib/libXm.so.2
lrwxrwxrwx. 1 root root 14 Dec 29 2020 /usr/lib/libXm.so.2 -> libXm.so.4.0.4

If the link does not exist, create it

cd /usr/lib
ln -s libXm.so.4.0.4 libXm.so.2

25 Fix the issue starting Weblogic admin server

sh: which: line 1: syntax error: unexpected end of file
sh: error importing function definition for `which'

Solution: add the following line to /home/applmgr/.bashrc

unset which

26 Start the EBS applications

cd $ADMIN_SCRIPTS_HOME/
./adstrtal.sh

27 Apply patches to deactivate unsupported products

Follow these steps to deactivate unsupported EBS 12.2 products on OEL/RHEL8:

Download Patch 35090694 and follow the patch README to run the script to deactivate EBS products not supported on OL/RHEL 8 (see Unsupported Products section below).
This patch will need to be downloaded and re-run after the application of an EBS Release Update Pack (RUP). This patch should also be applied before the application of the AD/TXK Delta RUP as part of a new installation for example.

unzip p35090694_R12_GENERIC.zip
./cleanup122.sh
Enter the APPS Schema password :
Enter the CONTEXT_FILE location :/u01/install/APPS/fs1/inst/apps/EBSDB_apps/appl/admin/EBSDB_apps.xml

After installing the patch above to deactivate unsupported products, you should apply the following patches in hotpatch mode:

Patch 37913870:R12.SHT.C
Patch 37579590:R12.PON.D

adop phase=apply patches=37913870,37579590 apply_mode=hotpatch patchtop=/tmp

27.1 Set the profile options

In order to use the 64-bit Planning executables of the Value Chain Planning products, set the following profile options:

MSC: Enable 64 bit snapshot to “Enable”
MSC: 64-bit Planner Platform to “Linux 64-bit”

28 Firewall setup for upgraded multi-node environments

After performing an in-place OS upgrade to Oracle Linux 8, you may may see connection errors due to the use of nftables as the default firewall backend for the firewalld daemon.

In that case, change the FirewallBackend to iptables in the file /etc/firewalld/firewalld.conf as shown below and restart the firewall service.

From:

FirewallBackend=nftables

To:

FirewallBackend=iptables

Restart the firewall:

sudo systemctl restart firewalld

29 Mount NFS/CIFS shares back

Edit /etc/fstab and run the following command:

mount -a

30 Disable SSH root login

If it has been enabled before the upgrade.

sudo sed -i 's/PermitRootLogin yes/#PermitRootLogin yes/' /etc/ssh/sshd_config
sudo passwd -d root

31 Perform healthcheck

Login to Oracle EBS front end. Check that the Forms, Concurrent managers status.
Check the EBS and Database log files in the backend.

32 Run adop fs_clone

Run fs_clone to make sure that the run file system changes are synchronized to the patch file system.

adop phase=fs_clone

33 Conclusion

If you wanted to perform an upgrade but postponed it because was scared by Oracle E-Business Suite 12.2 related steps, now Leapp makes the process much easier. I hope that this article helps you with your upgrade projects. Please share your feedback in the comments!
